Product Details

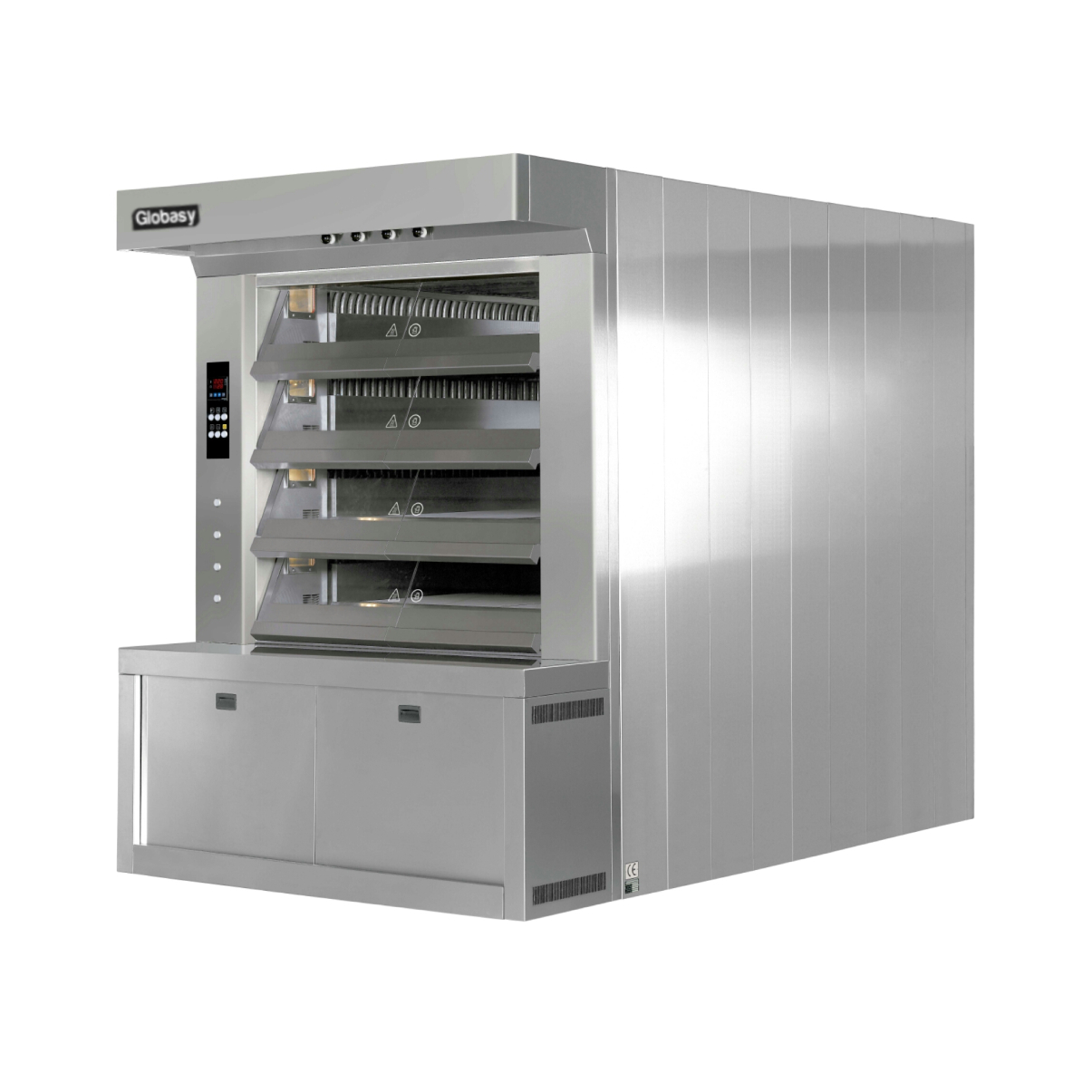

Steam Tube Oven

  • Product Category : Baking Oven Group
  • SKU :

Steam tube ovens that can be operated with manual loaders. Burning chamber is built of refractory bricks. Concrete and. mosaic reinforced side walls. Fuel efficiency up to %40. High quality baking rivaling to traditional ovens . Perfect heat. distribution both inside and between the decks. Control mechanism for steam evacuation damper on front control panel Healthy baking with indirect heat transfer. Durable base stones reinforced with stainless steel frames. Powerful steam system that is controllable seperately for each deck. Value adding design. Safety thermostat for a safer operation. Heat and steam resistant control panel. Baking standard Independently opening, glass or metal doors at each deck Ergonomic operation with 3 decks.

The Oven is suitable for different products as breads, rolls, pies, pastries and pizza’s. This unique concept of heating steam tubes provides our customers with low energy consumption, quick temperature recovery and the perfect uniform bake every time.The most important characteristic of this oven is the unique heating system. Heat is supplied by a dense network of closed vapor tubes in which hot steam circulates. The baking chambers on each deck are wrapped by these vapor tubes in and around the entire deck.  High quality stainless steel is used on the entire outside & inside of the oven for easy cleaning and maintenance. Each deck has its own designed steam system.

Natural Gas   -  Diesel

Model baking Surface
           (sqm)
inter Dimension
      (WxLxH)/Cm
   Dimension
(WxLxH)/cm
Electric Power
              Kw
Heat Cap
        Kcal
Energy Consup
 Diesel - Gas
Voltage (V/Hz)

Weight

GLTO-48                 4,8       102x129x20     146x212x235                1,5         34000      3,9lt  -  3m3/h 380V50 - 220v/60    2100 kg
GLTO-65                 6,5       102x164x20     146x248x235                1,5         38000      4,33lt - 4m3/h 380V50 - 220v/60    2600 kg
GLTO-80                   8       124x164x20     175x296x268                1,5         42500     5,5lt -  4,2m3/h 380V50 - 220v/60    3000 kg
GLTO-110                   11       124x218x20     175x348x268                1,5         48000     6,2lt  -  4,7m3/h 380V50 - 220v/60    4000 kg
